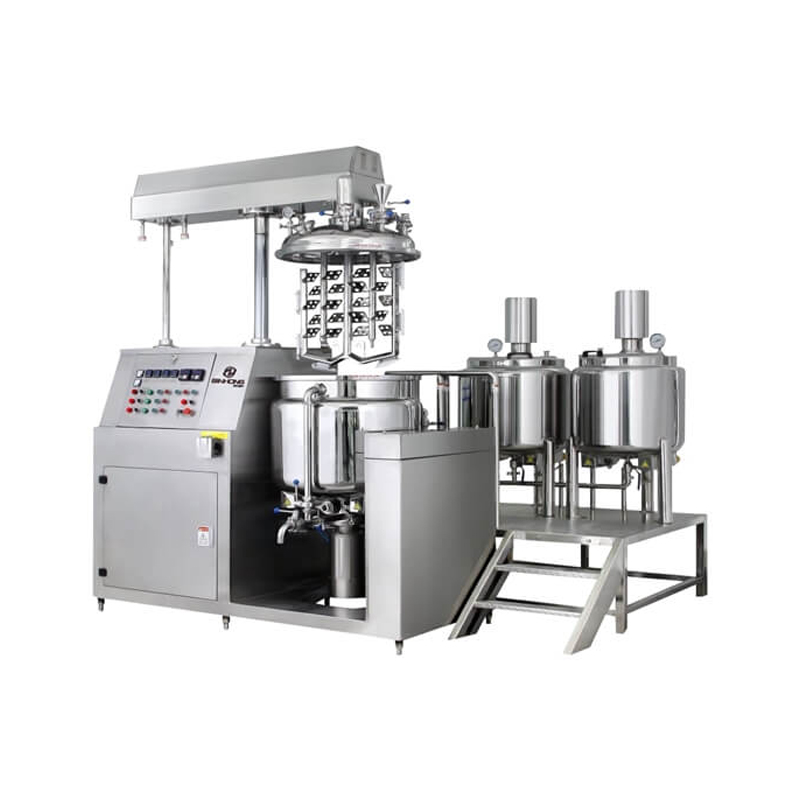

Our company manufactures a diverse range of vacuum emulsification equipment. The homogenization systems available include top, bottom, and internal/external circulation configurations; the stirring systems offer options such as unidirectional, bidirectional, and helical ribbon agitation. Furthermore, the lifting mechanisms are available in single-cylinder and dual-cylinder designs. We are also able to customize various high-quality products tailored precisely to meet specific client requirements. This machine incorporates advanced technologies—including high-efficiency homogenization technology from Spain, CIP cleaning systems, and automated valve controls—which not only distinguish its aesthetic appearance significantly from standard machinery but also vastly enhance its functional efficiency. It represents a new generation of production equipment, serving as an ideal manufacturing solution for facilities adhering to GMP standards.
<div class="ckeditor-html5-video" data-responsive="true" style="text-align: center;">
<video controls="controls" controlslist="nodownload" src="/uploads/2604/15f269d55856a5db6777767d73a587c0.mp4" style="max-width: 100%; height: auto;"> </video>
</div>
<p> </p>

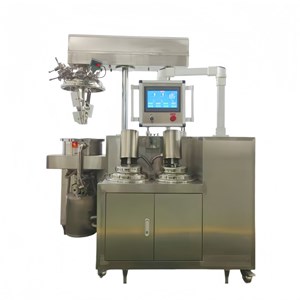

<p>♦ Mobile base frame, suitable for laboratory environments.</p>
<p>♦ Modular construction allows for standalone operation or integration into other equipment systems.</p>
<p>♦ Advanced reactor vessel design facilitates small-batch production, ensures optimized material flow within the vessel, and simplifies surface cleaning.</p>
<p>♦ User-friendly operating system: simple, intuitive controls enable access to powerful functionalities.</p>
<p>♦ Extensive range of optional configurations:</p>
<ul>
<li>Steam or electric heating</li>
<li>Automatic valve control</li>
<li>Lid lifting and locking mechanisms</li>
<li>Flow meters, weighing systems, or feeding stations</li>
<li>High- and low-level circulation piping</li>
<li>CIP cleaning system.</li>
</ul>
<table border="1" cellpadding="1" cellspacing="1">
<tbody>
<tr>
<td colspan="1" rowspan="2">Type</td>
<td colspan="1" rowspan="2">Workingcapacity</td>
<td colspan="2" rowspan="1">Homogenizer</td>
<td colspan="2" rowspan="1">Agitator</td>
<td colspan="2" rowspan="1">Vacuum pump</td>
<td colspan="2" rowspan="1">Heating power（KW）</td>
</tr>
<tr>
<td>KW</td>
<td>r/min</td>
<td>KW</td>
<td>r/min</td>
<td>KW</td>
<td>Limit vacuum</td>
<td>Electrical heating</td>
<td>Steam heating</td>
</tr>
<tr>
<td>MSD-E 5L</td>
<td>5L</td>
<td>0.37</td>
<td>0-3600</td>
<td>0.18</td>
<td>0-63</td>
<td>0.18</td>
<td>-0.09</td>
<td>5</td>
<td>2</td>
</tr>
<tr>
<td>MSD-E 10L</td>
<td>10L</td>
<td>0.55</td>
<td>0-3600</td>
<td>0.37</td>
<td>0-63</td>
<td>0.25</td>
<td>-0.09</td>
<td>6</td>
<td>3</td>
</tr>
<tr>
<td>MSD-E 20L</td>
<td>20L</td>
<td>0.75</td>
<td>0-3600</td>
<td>0.55</td>
<td>0-63</td>
<td>0.25</td>
<td>-0.09</td>
<td>9</td>
<td>5</td>
</tr>
<tr>
<td>MSD- E 50L</td>
<td>50L</td>
<td>3</td>
<td>0-3600</td>
<td>0.75</td>
<td>0-63</td>
<td>0.81</td>
<td>-0.09</td>
<td>18</td>
<td>9</td>
</tr>
<tr>
<td>MSD-E 100L</td>
<td>100L</td>
<td>4</td>
<td>0-3600</td>
<td>1.5</td>
<td>0-63</td>
<td>1.5</td>
<td>-0.09</td>
<td>30</td>
<td>12</td>
</tr>
<tr>
<td>MSD-E 200L</td>
<td>200L</td>
<td>5.5</td>
<td>0-3600</td>
<td>2.2</td>
<td>0-63</td>
<td>2.2</td>
<td>-0.09</td>
<td>45</td>
<td>16</td>
</tr>
</tbody>
</table>
