Applications:Stainless steel storage tanks are primarily utilized for storage purposes within the food, pharmaceutical, daily chemical, general chemical, and beverage industries; they constitute indispensable equipment for manufacturers in these sectors.

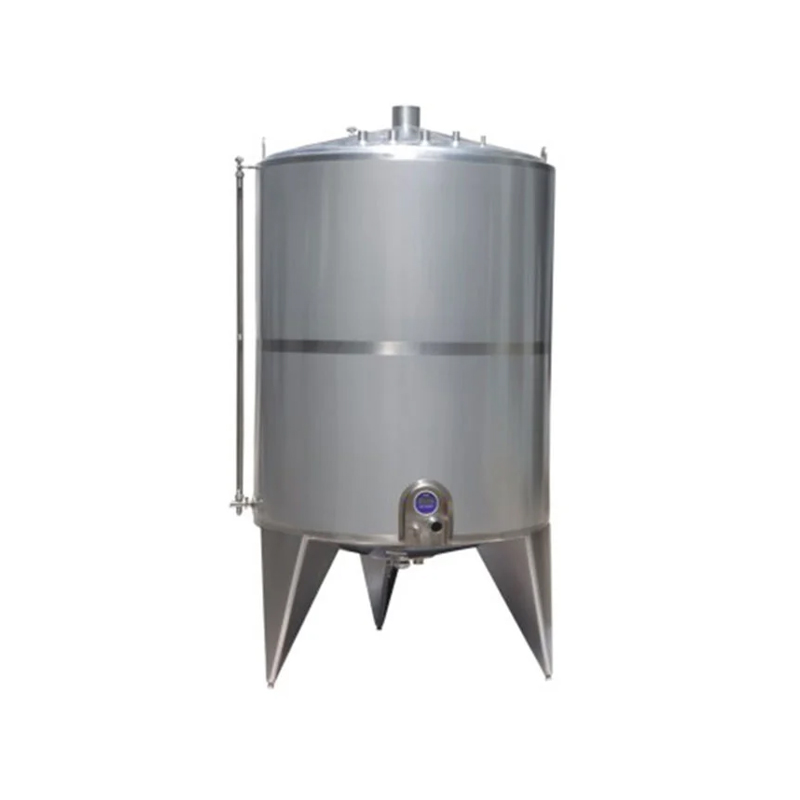

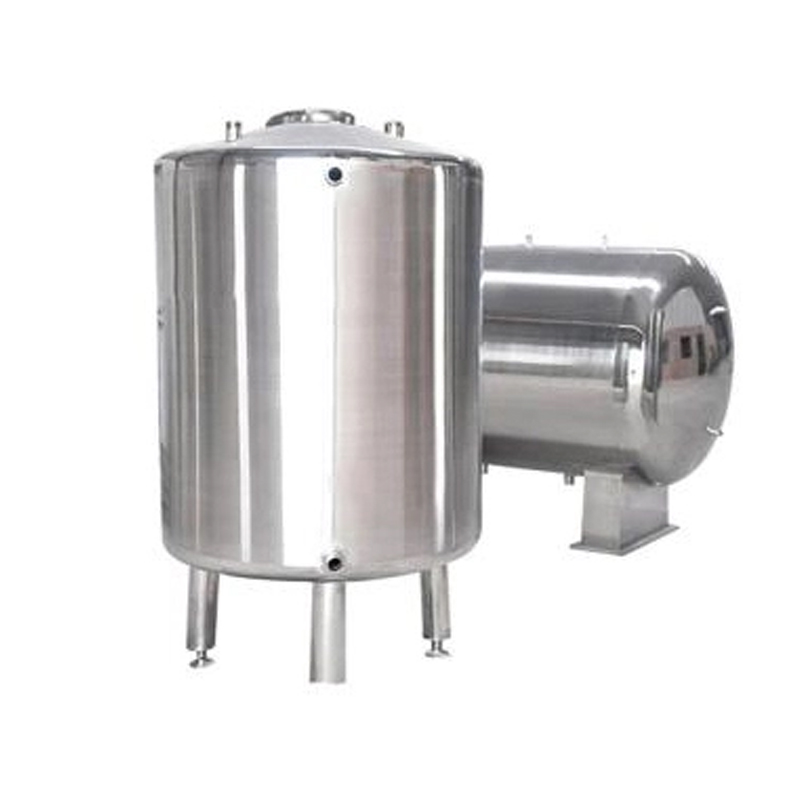

Equipment Structure:The stainless steel storage tank assembly consists of a tank body, a tank lid, an inlet port, and an outlet port. All components are fabricated from imported, acid-resistant stainless steel (Grade 304 or 316) and are manufactured in strict compliance with GMP technical standards. The interior of the tank body features a polished finish. The unit is equipped with a hinged, openable lid design to facilitate easy cleaning. The tank bottom features a conical shape, and the outlet port is designed to facilitate convenient discharge; it can be connected to external piping systems to enable the continuous feeding of various ingredients. The discharge port is located at the base of the unit.
<p>1. Features a structure consisting of an inner vessel encased within an outer shell, with insulating material filled in the intermediate space.<br />
2. All materials used are of sanitary-grade stainless steel.<br />
3. The structural design is highly ergonomic and offers excellent operational ease.<br />
4. The transition sections of the inner vessel wall feature smooth curved transitions, ensuring a sanitary environment free of dead corners.<br />
5. The tank is constructed from high-quality sanitary-grade 304 or 316L stainless steel; the inner surface is mirror-polished to Ra ≤ 0.28μm, while the outer surface is finished in matte, mirror-polish, sandblasted, or original cold-rolled matte styles.<br />
6. Standard capacities range from 50L to 1000L (available in various specifications); custom design and manufacturing are also available to meet specific client requirements.<br />
7. The tank is available in single-layer or double-layer configurations, with the option to fill the intermediate space with insulating material as per user specifications.<br />
8. The unit is equipped with movable casters (including directional casters with locking brakes).<br />
9. Includes a stainless steel lid and features a push handle integrated into the tank body.</p>
<p> </p>
<table border="1" cellpadding="1" cellspacing="1">
<tbody>
<tr>
<td>Nominal capacity</td>
<td>
<p>300L</p>
</td>
<td>
<p>400L</p>
</td>
<td>
<p>500L</p>
</td>
<td>
<p>600L</p>
</td>
<td>
<p>800L</p>
</td>
<td>
<p>1000L</p>
</td>
<td>
<p>1500L</p>
</td>
<td>
<p>2000L</p>
</td>
<td>
<p>3000L</p>
</td>
</tr>
<tr>
<td>Cylinder diameter（mm）</td>
<td>
<p>Φ800</p>
</td>
<td>
<p>Φ800</p>
</td>
<td>
<p>Φ900</p>
</td>
<td>
<p>Φ1000</p>
</td>
<td>
<p>Φ1000</p>
</td>
<td>
<p>Φ1200</p>
</td>
<td>
<p>Φ1300</p>
</td>
<td>
<p>Φ1300</p>
</td>
<td>
<p>Φ1600</p>
</td>
</tr>
<tr>
<td>Shell height（mm）</td>
<td>
<p>600</p>
</td>
<td>
<p>800</p>
</td>
<td>
<p>800</p>
</td>
<td>
<p>800</p>
</td>
<td>
<p>1000</p>
</td>
<td>
<p>1000</p>
</td>
<td>
<p>1200</p>
</td>
<td>
<p>1500</p>
</td>
<td>
<p>1500</p>
</td>
</tr>
<tr>
<td>Working temperature</td>
<td colspan="9" rowspan="1">＜100℃</td>
</tr>
<tr>
<td>Basic parts</td>
<td colspan="9" rowspan="1">Manhole, cleaning ball, level gauge (500L)</td>
</tr>
</tbody>
</table>
<p> </p>
<p> </p>
<p><img alt="" src="/uploads/2604/fhsifhsifnsi.jpg" /></p>
