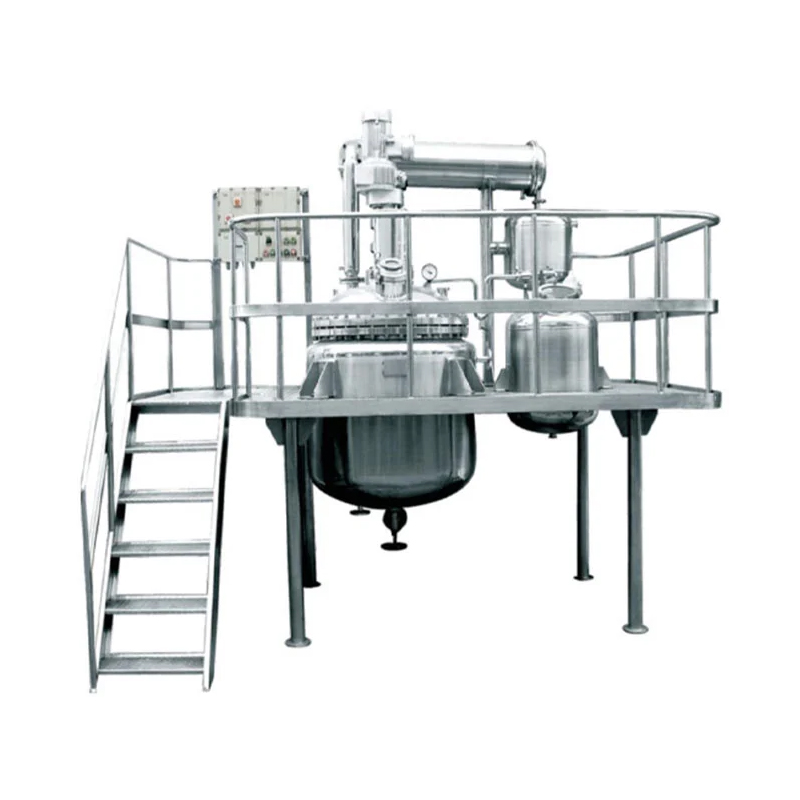

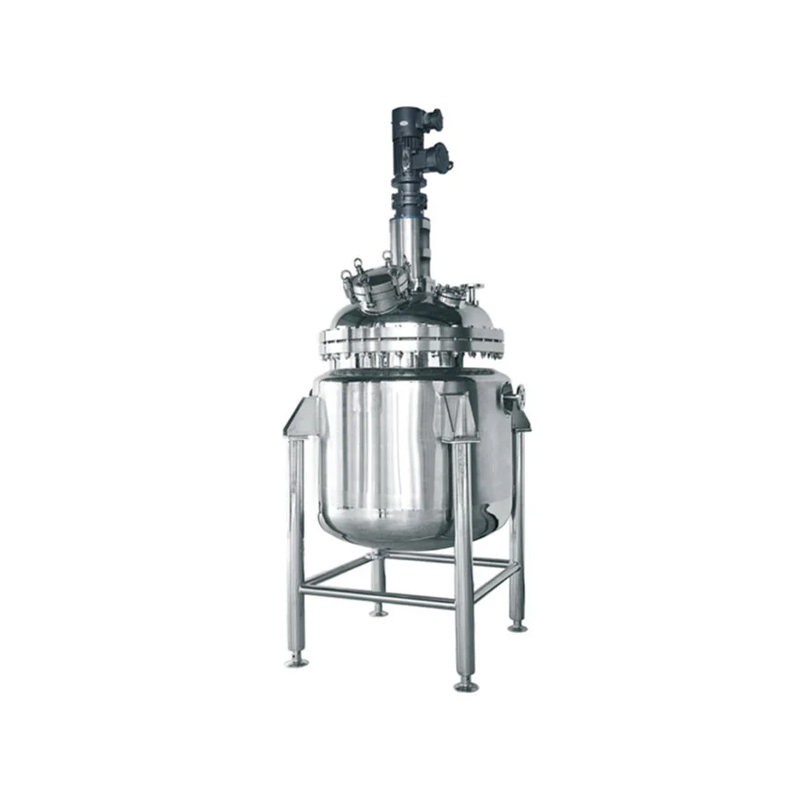

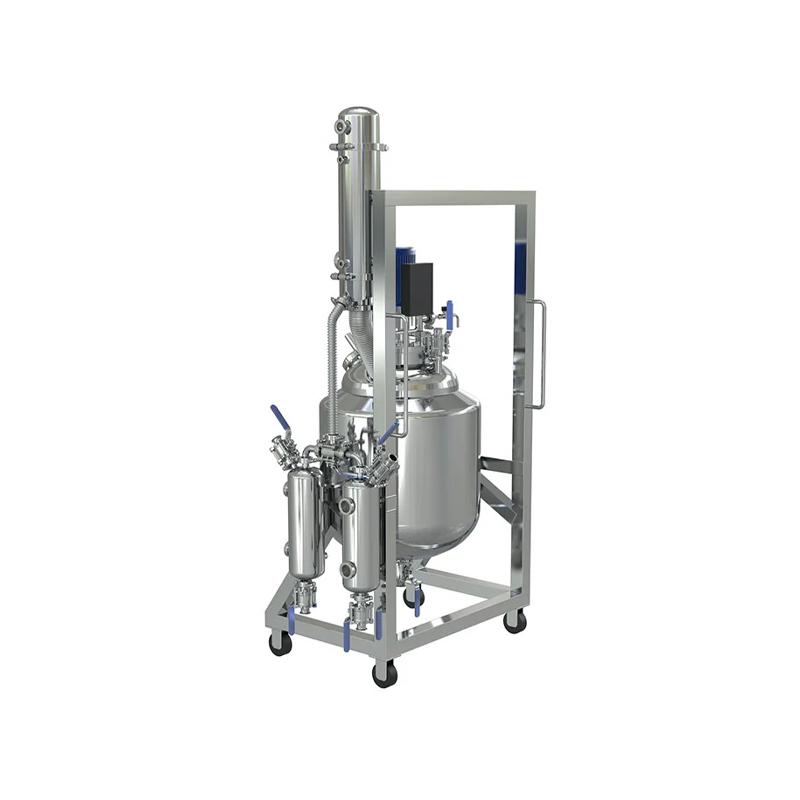

Electric Heating Reactor

<ol start="1"> <li> <p>High Reaction Efficiency: Optimized agitator system and heat transfer structure ensure uniform mixing and complete reaction.</p> </li> <li> <p>High-Quality Material Construction: Made of SUS304/SUS316L stainless steel, corrosion-resistant and high-temperature resistant, meeting sanitary standards.</p> </li> <li> <p>Easy Operation: Fully automatic PLC control, one-touch setting for temperature, pressure, agitation speed, and reaction time, no need for dedicated supervision.</p> </li> <li> <p>Precise Temperature Control: Jacket or coil heat exchange design with high-precision temperature sensor for real-time monitoring and automatic temperature adjustment.</p> </li> <li> <p>Reliable Sealing: Mechanical seal or magnetic seal eliminates leakage, suitable for flammable, explosive, and toxic materials.</p> </li> <li> <p>Pressure Capable Design: Vessel can withstand positive or negative pressure to meet various reaction requirements.</p> </li> <li> <p>Multiple Agitator Types: Anchor, paddle, turbine, frame, and high-shear agitators available to suit different material characteristics.</p> </li> <li> <p>Easy CIP Cleaning: Mirror-polished inner surface with dead-angle-free design, optional CIP spray ball for easy cleaning.</p> </li> <li> <p>Simple Installation and Maintenance: Compact structure, integrated factory assembly, ready for use after connecting to utilities on site.</p> </li> <li> <p>Multiple Safety Protections: Over-temperature alarm, over-pressure alarm, safety valve, rupture disc, and emergency stop button ensure operational safety.</p> </li> <li> <p>Versatile Configurations: Optional condenser, dosing tank, sampling valve, sight glass, and load cells available.</p> </li> <li> <p>Insulation Layer Design: Optional insulation layer on the outer shell reduces heat loss and saves energy.</p> </li> </ol>

<table> <thead> <tr> <th>Nominal Volume (L)</th> <th>Vessel Inner Diameter (mm)</th> <th>Vessel Height (mm)</th> <th>Heat Exchange Area (m²)</th> <th>Agitation Power (kW)</th> </tr> </thead> <tbody> <tr> <td>50</td> <td>400</td> <td>500</td> <td>0.6</td> <td>0.55</td> </tr> <tr> <td>100</td> <td>500</td> <td>600</td> <td>0.9</td> <td>0.75</td> </tr> <tr> <td>200</td> <td>600</td> <td>800</td> <td>1.4</td> <td>1.1</td> </tr> <tr> <td>300</td> <td>700</td> <td>900</td> <td>1.8</td> <td>1.5</td> </tr> <tr> <td>500</td> <td>800</td> <td>1100</td> <td>2.5</td> <td>2.2</td> </tr> <tr> <td>800</td> <td>900</td> <td>1300</td> <td>3.4</td> <td>3.0</td> </tr> <tr> <td>1000</td> <td>1000</td> <td>1400</td> <td>4.0</td> <td>4.0</td> </tr> <tr> <td>1500</td> <td>1100</td> <td>1600</td> <td>5.0</td> <td>5.5</td> </tr> <tr> <td>2000</td> <td>1200</td> <td>1800</td> <td>6.3</td> <td>7.5</td> </tr> <tr> <td>2500</td> <td>1300</td> <td>1900</td> <td>7.5</td> <td>7.5</td> </tr> <tr> <td>3000</td> <td>1400</td> <td>2000</td> <td>8.5</td> <td>11.0</td> </tr> <tr> <td>4000</td> <td>1500</td> <td>2200</td> <td>10.0</td> <td>15.0</td> </tr> <tr> <td>5000</td> <td>1600</td> <td>2400</td> <td>12.0</td> <td>18.5</td> </tr> <tr> <td>6300</td> <td>1700</td> <td>2700</td> <td>14.0</td> <td>22.0</td> </tr> <tr> <td>8000</td> <td>1800</td> <td>2900</td> <td>17.0</td> <td>30.0</td> </tr> <tr> <td>10000</td> <td>2000</td> <td>3200</td> <td>21.0</td> <td>37.0</td> </tr> <tr> <td>12500</td> <td>2200</td> <td>3400</td> <td>24.0</td> <td>45.0</td> </tr> <tr> <td>16000</td> <td>2400</td> <td>3700</td> <td>29.0</td> <td>55.0</td> </tr> <tr> <td>20000</td> <td>2600</td> <td>4000</td> <td>35.0</td> <td>75.0</td> </tr> </tbody> </table>
