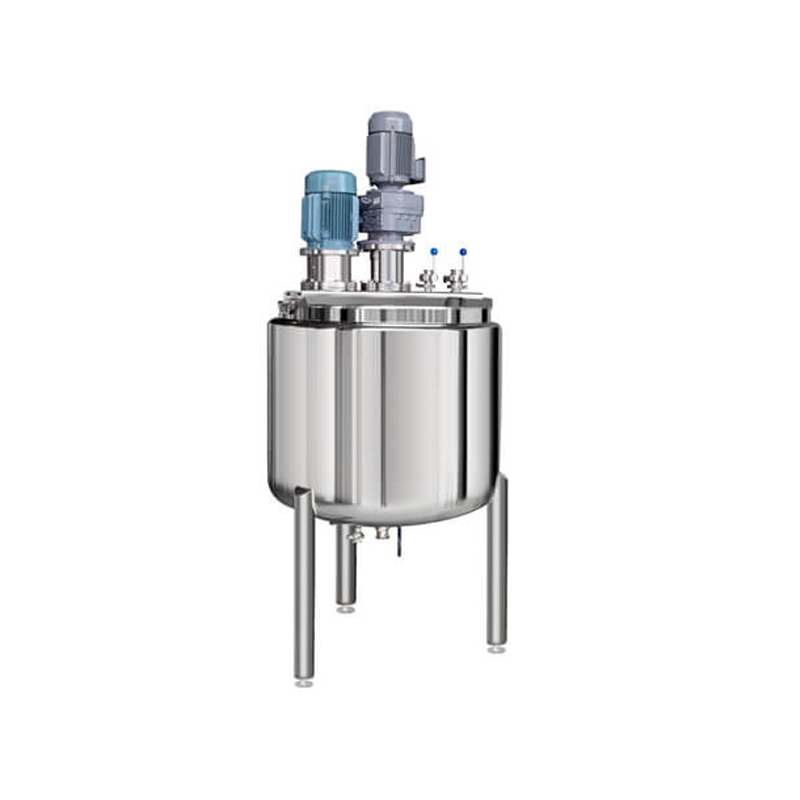

Open Dual Shaft Mixer Without Hydraulics
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
The Multi-Shaft Mixer is a versatile, high-performance mixing system designed for processing medium-to-high viscosity products, including viscous solutions, dispersions, suspensions, pastes, gels, and emulsions . Equipped with two or three independently driven agitators working in tandem, this mixer delivers a robust combination of high shear agitation and laminar bulk flow across a wide viscosity range—from water-like consistency to several hundred thousand centipoise (cP) .
<p>/</p>
<ol start="1">
<li>
<p>High Mixing Efficiency: Dual-shaft or triple-shaft independently driven, high-shear disperser and low-speed anchor agitator work together to quickly process medium-to-high viscosity materials.</p>
</li>
<li>
<p>High-Quality Construction: Shafts and blades made of SUS316L stainless steel, dynamically balanced for smooth and vibration-free operation.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, independent VFD speed adjustment for each shaft, one-touch recipe recall, no manual intervention required.</p>
</li>
<li>
<p>Scraped Wall System: Anchor agitator equipped with PTFE scrapers continuously wipes the vessel wall and bottom, preventing material buildup and improving heat transfer efficiency.</p>
</li>
<li>
<p>Hydraulic Lift Mechanism: Complete agitator assembly lifts up, allowing the vessel to be rolled out for easy cleaning and batch change. One mixer can serve multiple vessels for higher efficiency.</p>
</li>
<li>
<p>Vacuum/Pressure Optional: Vacuum system available for deaeration; also capable of positive pressure operation to meet different process requirements.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, small footprint, integrated factory assembly, ready for use after connecting to utilities on site.</p>
</li>
<li>
<p>Multiple Safety Protections: Lift limit protection, vessel positioning detection, overload alarm, and emergency stop button ensure operational safety.</p>
</li>
<li>
<p>Built-In CIP Spray Ball: 360-degree no-dead-angle spray cleaning, no disassembly required for tank cleaning.</p>
</li>
<li>
<p>Jacketed Temperature Control System: Jacketed vessel with insulation allows steam or cooling water circulation for precise material temperature control.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Model</th>
<th>Processing Capacity (L)</th>
<th>High-Speed Shaft Power (kW)</th>
<th>High-Speed Shaft Speed (rpm)</th>
<th>Low-Speed Shaft Power (kW)</th>
<th>Low-Speed Shaft Speed (rpm)</th>
</tr>
</thead>
<tbody>
<tr>
<td>MSD-200L</td>
<td>200</td>
<td>5.5</td>
<td>0-1450</td>
<td>1.5</td>
<td>85</td>
</tr>
<tr>
<td>MSD-300L</td>
<td>300</td>
<td>7.5</td>
<td>0-1450</td>
<td>3</td>
<td>61</td>
</tr>
<tr>
<td>MSD-500L</td>
<td>500</td>
<td>15</td>
<td>0-1450</td>
<td>7.5</td>
<td>61</td>
</tr>
<tr>
<td>MSD-800L</td>
<td>800</td>
<td>30</td>
<td>0-1450</td>
<td>11</td>
<td>52</td>
</tr>
<tr>
<td>MSD-1000L</td>
<td>1000</td>
<td>37</td>
<td>0-1450</td>
<td>18.5</td>
<td>52</td>
</tr>
<tr>
<td>MSD-2000L</td>
<td>2000</td>
<td>45</td>
<td>0-1450</td>
<td>22</td>
<td>41</td>
</tr>
</tbody>
</table>
