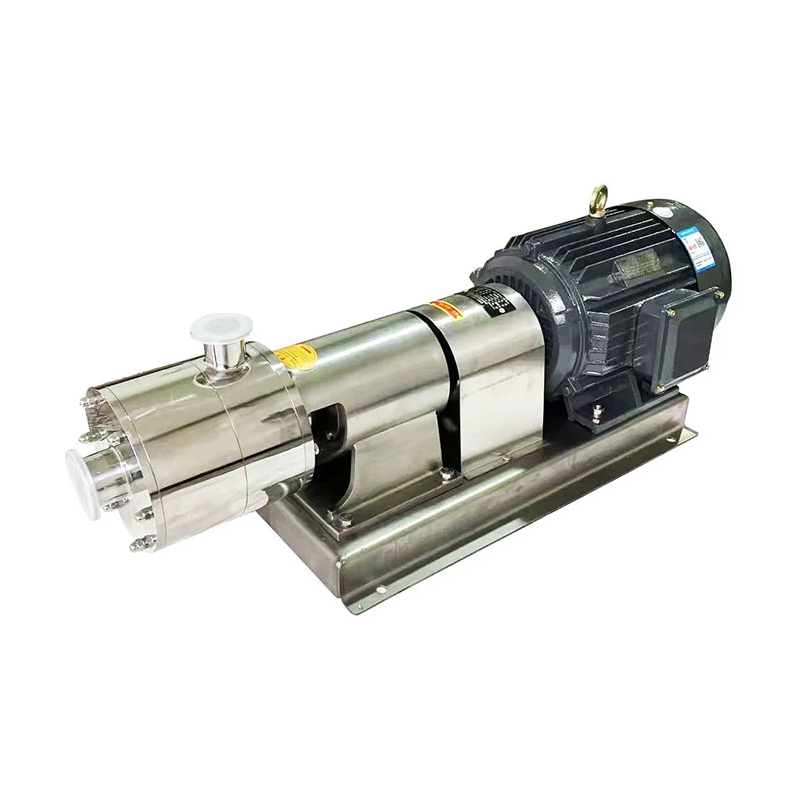

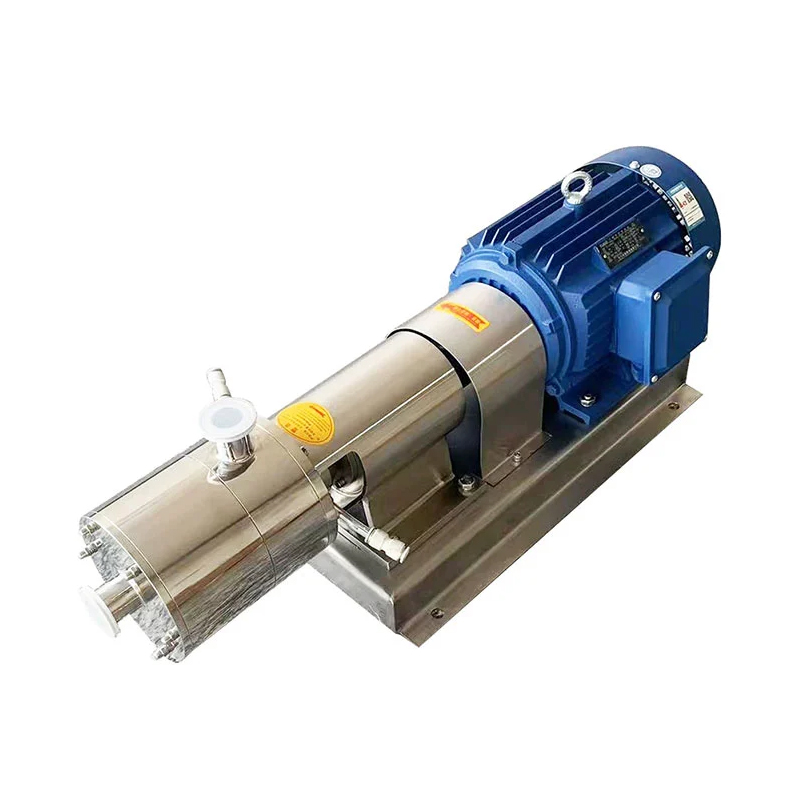

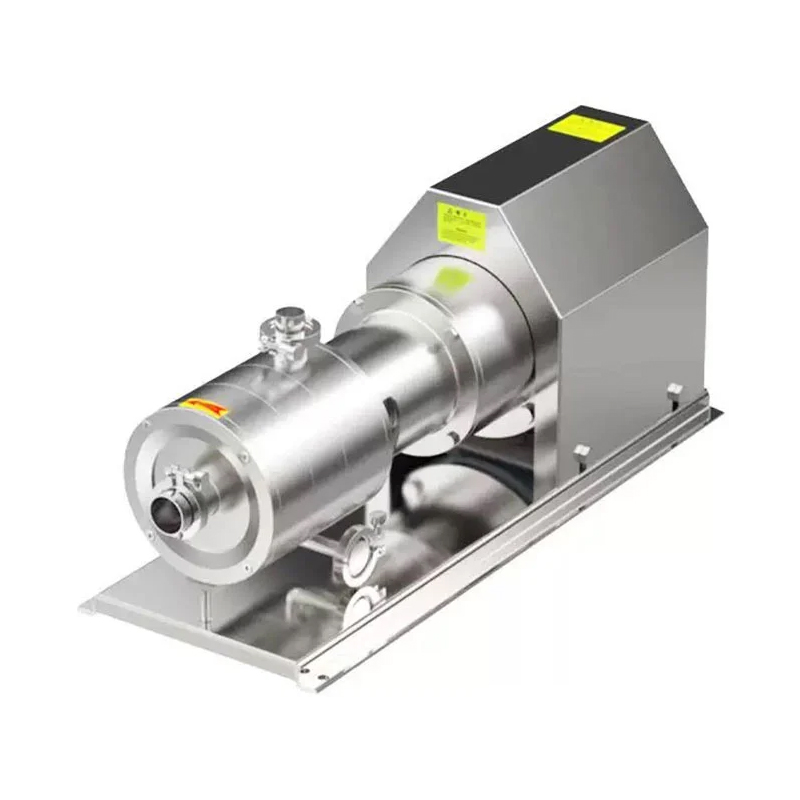

Three-Stage Emulsifying Pump

Material:

SUS316

Function:

Mixing, Heating, and Homogenizing

Brand Name:

Maishidi

Stirring Speed:

0~60r/min

Homogenization Speed:

0~3000r/min

Certification:

CE UL

An emulsification pump is a device that utilizes a precision-engineered combination of a stator and a rotor to generate powerful shear forces through high-speed rotation, thereby achieving the objectives of mixing, pulverizing, and emulsifying materials. As a highly efficient inline dispersion unit, it is installed directly within a pipeline to facilitate the continuous processing of materials. Furthermore, it serves to eliminate quality variations between different production batches. Its fundamental structure consists of a pump chamber housing a pair of stator and rotor components. Key features include high processing throughput, capability for continuous inline production, a narrow particle size distribution range, high uniformity, energy efficiency, low noise levels, and smooth operation. It is suitable for use in both industrial-scale manufacturing and pilot-scale production for the emulsification, homogenization, and dispersion of various products, and can be seamlessly integrated into existing pipeline systems.

<p>1. High processing capacity, suitable for continuous, in-line industrial production;<br /> 2. Narrow particle size distribution and high uniformity;<br /> 3. Energy-efficient, time-saving, and highly efficient;<br /> 4. Low noise levels and smooth operation;<br /> 5. Eliminates quality variations between production batches;<br /> 6. No dead zones; 100% of the material undergoes dispersion and shearing;<br /> 7. Capable of short-distance, low-head material conveyance;<br /> 8. Simple to operate and easy to maintain;<br /> 9. Compatible with automated control systems.</p>

<table border="1" cellpadding="1" cellspacing="1"> <tbody> <tr> <td>model</td> <td>Motor Power(KW)</td> <td>Processing Capacity</td> </tr> <tr> <td>SHR-120</td> <td>2.2</td> <td>0-3</td> </tr> <tr> <td>SHR-135</td> <td>4</td> <td>0-4</td> </tr> <tr> <td>SHR-140</td> <td>5.5</td> <td>0-5</td> </tr> <tr> <td>SHR-150</td> <td>7.5</td> <td>0-8</td> </tr> <tr> <td>SHR-165</td> <td>11</td> <td>0-11</td> </tr> <tr> <td>SHR-175</td> <td>15</td> <td>0-13</td> </tr> <tr> <td>SHR-175</td> <td>18.5</td> <td>0-13</td> </tr> <tr> <td>SHR-180</td> <td>22</td> <td>0-15</td> </tr> <tr> <td>SHR-190</td> <td>30</td> <td>0-18</td> </tr> </tbody> </table>

Three-Stage Emulsifying Pump
