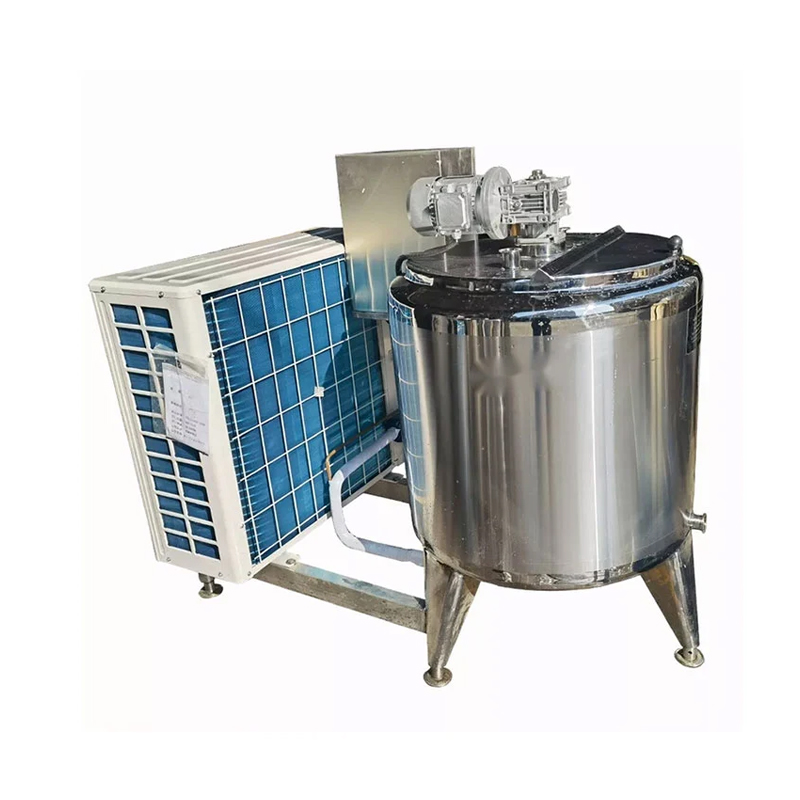

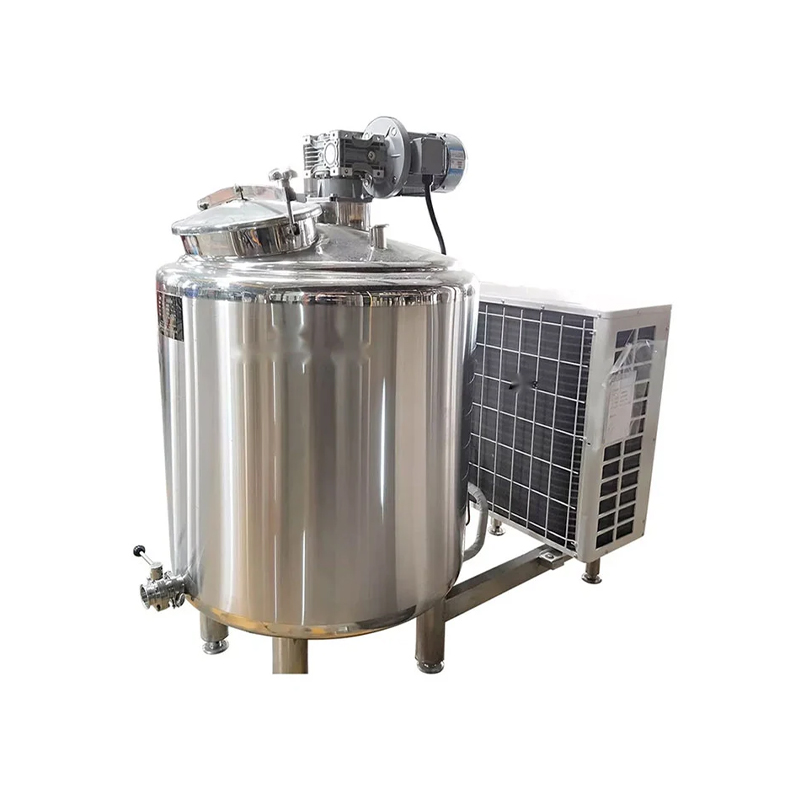

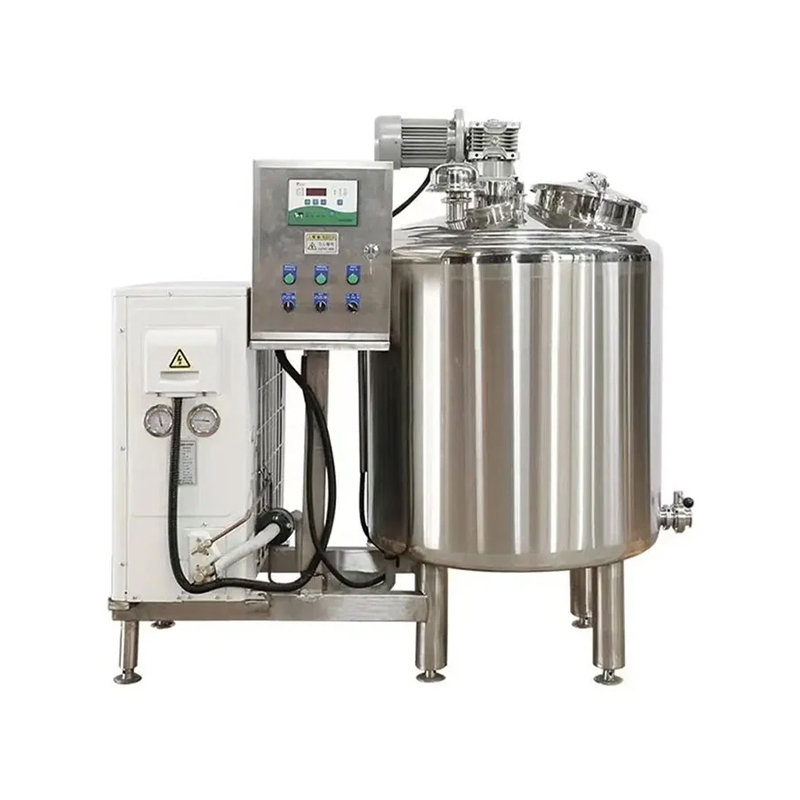

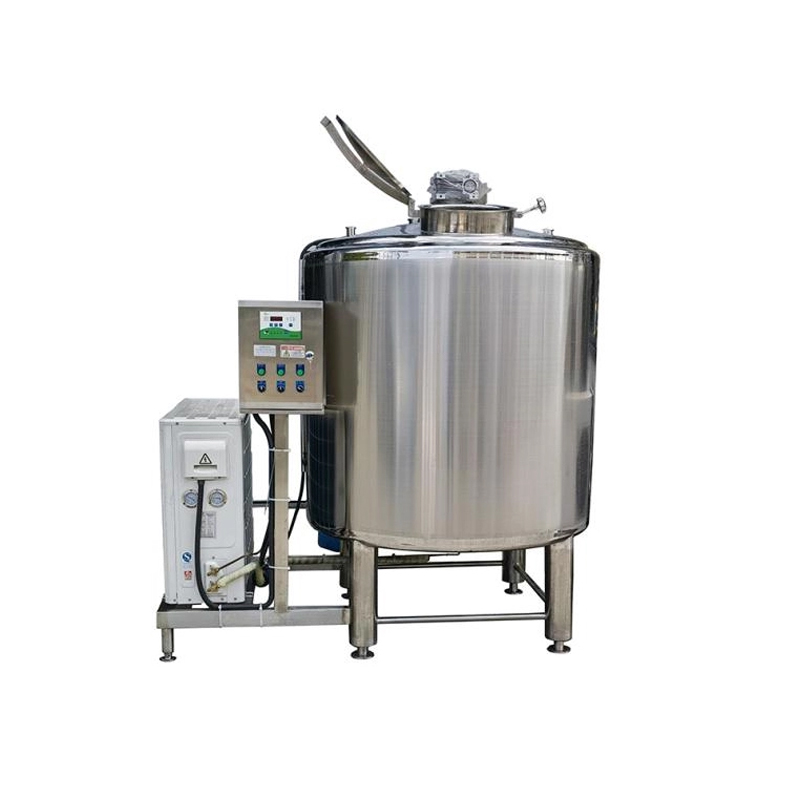

Milk Cooling Tank
- Material:
- SUS316
- Function:
- Mixing, Heating, and Homogenizing
- Brand Name:
- Maishidi
- Stirring Speed:
- 0~60r/min
- Homogenization Speed:
- 0~3000r/min
- Certification:
- CE UL
A cooling tank is a specialized storage vessel designed for rapidly lowering the temperature of materials; it is widely utilized across industries such as food, beverages, pharmaceuticals, chemicals, and cosmetics. Its core function involves facilitating heat exchange between the material inside the tank and a cooling medium—such as cooling water, an ethylene glycol solution, or chilled water—circulating within its jacket. This process enables the material to be cooled from high temperatures to the desired level within a short timeframe, thereby ensuring product quality stability and meeting the requirements of subsequent processing stages.
<p>/</p>
<ol start="1">
<li>
<p>High Cooling Efficiency: Large-area jacketed heat exchange structure, optional built-in agitator for fast cooling and uniform temperature reduction.</p>
</li>
<li>
<p>High-Quality Tank Construction: Made of SUS304/SUS316L stainless steel, pressure-tested to ensure no leakage and no deformation.</p>
</li>
<li>
<p>Easy Operation: Fully automatic PLC control, one-touch setting for cooling temperature and time, automatic operation, no need for dedicated supervision.</p>
</li>
<li>
<p>Precise Temperature Control: Equipped with high-precision temperature sensor and automatic regulating valve for real-time monitoring and control of material temperature.</p>
</li>
<li>
<p>Insulation Layer Design: Outer layer covered with polyurethane or rock wool insulation to reduce cold energy loss and improve cooling efficiency.</p>
</li>
<li>
<p>Built-In CIP Spray Ball: 360-degree no-dead-angle spray cleaning, no disassembly required for tank cleaning.</p>
</li>
<li>
<p>Simple Installation and Maintenance: Compact structure, small footprint, integrated factory assembly, ready for use after connecting to utilities on site.</p>
</li>
<li>
<p>Multiple Safety Protections: Over-temperature alarm, water shortage protection, overload protection, and emergency stop button ensure operational safety.</p>
</li>
<li>
<p>Optional Agitator System: Anchor, paddle, or propeller agitators available to improve cooling uniformity for large-capacity tanks.</p>
</li>
<li>
<p>Various Jacket Types: Single-layer jacket, dimple jacket, or coil jacket available to meet different cooling rate requirements.</p>
</li>
</ol>
<table>
<thead>
<tr>
<th>Model</th>
<th>Effective Volume (L)</th>
<th>Internal Diameter (mm)</th>
<th>Overall Height (mm)</th>
<th>Heat Exchange Area (m²)</th>
<th>Agitation Power (kW) (Optional)</th>
</tr>
</thead>
<tbody>
<tr>
<td>MSD-100</td>
<td>100</td>
<td>500</td>
<td>1200</td>
<td>0.8</td>
<td>0.37</td>
</tr>
<tr>
<td>MSD-200</td>
<td>200</td>
<td>600</td>
<td>1400</td>
<td>1.2</td>
<td>0.55</td>
</tr>
<tr>
<td>MSD-300</td>
<td>300</td>
<td>700</td>
<td>1500</td>
<td>1.6</td>
<td>0.75</td>
</tr>
<tr>
<td>MSD-500</td>
<td>500</td>
<td>800</td>
<td>1700</td>
<td>2.2</td>
<td>1.1</td>
</tr>
<tr>
<td>MSD-800</td>
<td>800</td>
<td>900</td>
<td>1900</td>
<td>3.0</td>
<td>1.5</td>
</tr>
<tr>
<td>MSD-1000</td>
<td>1000</td>
<td>1000</td>
<td>2100</td>
<td>3.5</td>
<td>2.2</td>
</tr>
<tr>
<td>MSD-1500</td>
<td>1500</td>
<td>1100</td>
<td>2400</td>
<td>4.5</td>
<td>3.0</td>
</tr>
<tr>
<td>MSD-2000</td>
<td>2000</td>
<td>1200</td>
<td>2600</td>
<td>5.5</td>
<td>4.0</td>
</tr>
<tr>
<td>MSD-3000</td>
<td>3000</td>
<td>1400</td>
<td>2900</td>
<td>7.0</td>
<td>5.5</td>
</tr>
<tr>
<td>MSD-4000</td>
<td>4000</td>
<td>1500</td>
<td>3200</td>
<td>8.5</td>
<td>7.5</td>
</tr>
<tr>
<td>MSD-5000</td>
<td>5000</td>
<td>1600</td>
<td>3500</td>
<td>10.0</td>
<td>7.5</td>
</tr>
<tr>
<td>MSD-8000</td>
<td>8000</td>
<td>1800</td>
<td>4000</td>
<td>14.0</td>
<td>11.0</td>
</tr>
<tr>
<td>MSD-10000</td>
<td>10000</td>
<td>2000</td>
<td>4400</td>
<td>17.0</td>
<td>15.0</td>
</tr>
<tr>
<td>MSD-15000</td>
<td>15000</td>
<td>2200</td>
<td>5000</td>
<td>23.0</td>
<td>18.5</td>
</tr>
<tr>
<td>MSD-20000</td>
<td>20000</td>
<td>2400</td>
<td>5600</td>
<td>30.0</td>
<td>22.0</td>
</tr>
</tbody>
</table>
